Sales by barcode scan not working. Need Advice on Solutions

[Chia]

Hi Loyverse,

I like to use sales item by barcode scanning. All my items have barcode configure. When I use the search function on top (sales screen), the barcode scan result is correct and able search the right item. But, when I directly scan with item with barcode scanner (sales screen), ticket screen either blank or some time select the wrong item.

I am using android TV box with android version 9. Barcode scanner is USB connection.

Appreciate if any Loyverse SME here help on this issue.

[Mag]

Hello! Please check if the Carriage return or CR function is switched on in your scanner. Please check the manual of your scanner.

[Chia]

Hello Mag, thanks for the reply.

I have try a few CR function of the scanner like Enter, Continuous, Tab...All not working.

I also did plug the scanner into my windows laptop to verify the scanner function, it is working as the configuration.

The barcode symbology is EAN-13.



[Chia]

When I scan the right item barcode in Loyverse search item function, system can search and show the correct item. But this way does not enter the item sales into the ticket.

The issue happen when I directly scan the right item barcode at Sales page, system enter the wrong item. Even I simply pick other barcode that not yet set in the item list, system still enter the wrong item.

I am curious why the search function can search the right item but sales ticket show the wrong item.

Any configuration or suggestion?

[Baanthai]

I also got the same problem as you.

Bar code scanner : LS2208, Symbol.
Configuration : USB keyboard HID
Adapter : USB OTG (Android), USB-C to USB hub (iOS)
Device : Galaxy Tab, iPad Pro, Huawei Mobile Phone
OS : All updates.  Already checked the minimum OS requirements on devices before purchase the device.

Android : After connected USB OTG adapter and bar code scanner, I have configured the scanner to HID.  Then try to scan some bar codes, it worked fine, testing with note apps.  In Loyverse, I entered the item page, and tab on 'bar code' and use BOTH tablet camera / bar code scanner to scan the bar code, they provided the same exact result.  No carriage return, no other signs.  Just pure digits of bar code value.   But when in Loyverse 'Sale' page, after scan the product, it kept blank.  No item was added into ticket.  But tried to use tablet camera to scan, it worked.    So, only the bar code scanner scan was not successful.

iOS :  Tried same thing as Android side, same issue.  Testing with other apps on iPad, it worked fine with bar code scanner.

I have contacted the Loyverse staff through chat, they said they will raise this issue to technical team.  Now waiting.

During this time, I also tested, but no clues yet.  Protocol correct, USB OTG device, correct scanned result, work with Loyverse app (only with any text field items),  no clue now.

[Baanthai]

SOLUTION : Please set the scanner to shoot and add 'Enter' to it.  This solution was proven.

Credit : ESS SYNTECH CO.,LTD



Edited November 2, 2020 by Baanthai
Update VDO link.

[Mobules]

I also have the same problem.. the scanner is not working during sale.. but working on encoding barcode and searching..  I think its in the loyverse system already.. I hope they could fix it on update..

[Masterbox]

Hi Chía, did you solved it? Same problem here and the add enter dont work







Edited February 2, 2021 by Masterbox
Typing

[YS]

Hi,

I have the same problem with my zebra Bluetooth scanner.  I have already setup CR suffix and can fins corresponding item in search function.  However, I got no respond when I scan the item in sales page.  I can select the items by tapping on the home sale screen item layout.

[DNDJ]

Same problem over here with a Netum NT-1228BC Bluetooth scanner. The scanner is not working during sale, but working on encoding barcode and searching. Carriage return or CR function is switched on.

Any idea?

[JJMART]

Hello,

I have the same problem here. It worked for a while, like a few days, then all of a sudden it stopped working and we have to go through the search function for each article which is not efficient.

Like others, I have tried to reconfigure the scanner to add a CR or any other options but it doesn't help.



Please assist.



[JJMART]

I will add that I have 2 different barcode scanners, one iOS tablet and one Android tablet and the problem is the same. I have also tried with USB or Bluetooth scanner, no difference.

[Yasuaki]

On 11/2/2022 at 3:13 PM, DNDJ said:

Same problem over here with a Netum NT-1228BC Bluetooth scanner. The scanner is not working during sale, but working on encoding barcode and searching. Carriage return or CR function is switched on.

Any idea?



On 7/8/2024 at 2:45 PM, JJMART said:

Hello,

I have the same problem here. It worked for a while, like a few days, then all of a sudden it stopped working and we have to go through the search function for each article which is not efficient.

Like others, I have tried to reconfigure the scanner to add a CR or any other options but it doesn't help.



Please assist.





On 7/8/2024 at 2:52 PM, JJMART said:

I will add that I have 2 different barcode scanners, one iOS tablet and one Android tablet and the problem is the same. I have also tried with USB or Bluetooth scanner, no difference.



Hello!

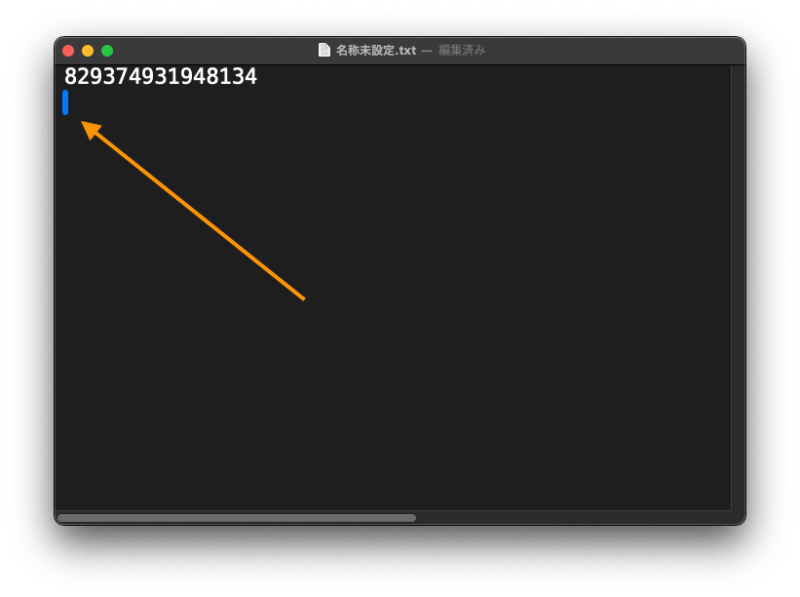

Could you open any text editor app and read a barcode on it?

The cursor should go to the next line if CR is activated on the barcode reader.

If not, probably, the CR is not activated on your barcode reader.

[JJMART]

Hello,

Thanks for your reply.

In the end I "solved" this issue by using a Samsung S9+ tablet that works perfectly with both bar code readers.



[ECS]

On 9/6/2024 at 9:35 AM, Yasuaki said:







Hello!

Could you open any text editor app and read a barcode on it?

The cursor should go to the next line if CR is activated on the barcode reader.

If not, probably, the CR is not activated on your barcode reader.

Thanks for the answer, i checked the CR activation as you mentioned before and it pass an ENTER at the end but still though not working on some devices as Ipad Air 2 but i managed to make it work on my Mi10T phone, i was thinking fir that the problem is from my barcode scanner but it seems there is some bug on the main page of Loyverse.

I hope you fix that as soon as possible

[Yasuaki]

On 10/18/2024 at 2:54 PM, ECS said:

Thanks for the answer, i checked the CR activation as you mentioned before and it pass an ENTER at the end but still though not working on some devices as Ipad Air 2 but i managed to make it work on my Mi10T phone, i was thinking fir that the problem is from my barcode scanner but it seems there is some bug on the main page of Loyverse.

I hope you fix that as soon as possible

Hello.

Just for your information, we support only Socket Mobile scanners for Loyverse POS on iOS.

If you are using Socket Mobile, please make sure that the Socket Mobile scanner is in "Application mode".
