How to automate feed receipt paper after printing completed

[Las-Cascadas-The-Fal]

Hello,

For anyone having trouble with their bills print being cut off from the right, the following command will help: B6,6C,9A

just write in the Initial ESC/POS commands area in advanced settings

Also you can find more command info that might help other situations in: http://www.ekka.com.ua/files/doc/ma501_4421_00_rev14.pdf

Hope it helps!



NOTE: Just to clarify, i do not own the MP-4000 TH POS Printer mentioned in the manual, but most commands did work for my off-brand Bluetooth thermal printer, so it might also work for yours

[PeterNZ]

Brilliant! Thank you this pointed me into the right direction. My problem was solved by adding a 0A to the "Cutter ESC/POS Commands" which added one linefeed.

Cheers

Peter

[Chia]

Hi,

I have the issue when bill printing completed, I tear the bill and the tear line fall on last printer line. How to auto feed paper further after the bill printing completed?

[Andy]

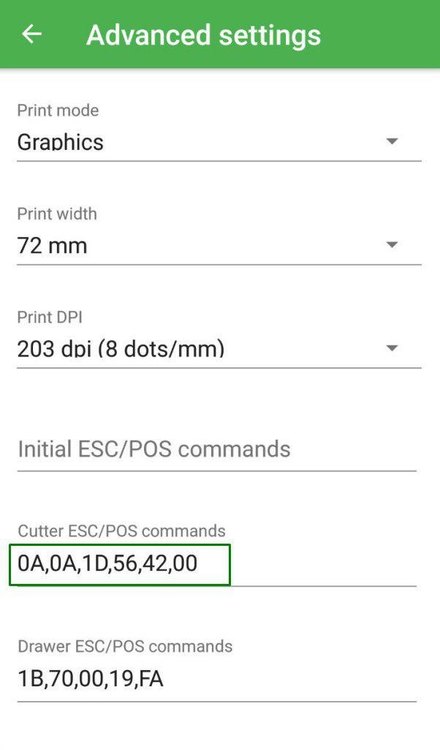

Please go to the App → Settings → choose your printer, then open Advanced Settings → and in the field 'Cutter ESC/POS Commands', add 0A, 0A before existing values. (This will make printer feed more paper at the end of receipt.)
For example:

you would have to write 0А,0А,1D,56,42,00

[Chia]

Thanks for the help and advice. The receipt feed issue has resolved.

[Kaylene]

Does anyone know how to fix this issue? I am using a Star Sp700 printer with an android table.

[Andy]

Hello, please, check the post:



[Kaylene]

Sp700 star miccronics printer is cutting orders. How do I change this issue?

[SA]

On 8/29/2020 at 6:24 PM, Andy said:

Please go to the App → Settings → choose your printer, then open Advanced Settings → and in the field 'Cutter ESC/POS Commands', add 0A, 0A before existing values. (This will make printer feed more paper at the end of receipt.)
For example:



you would have to write 0А,0А,1D,56,42,00

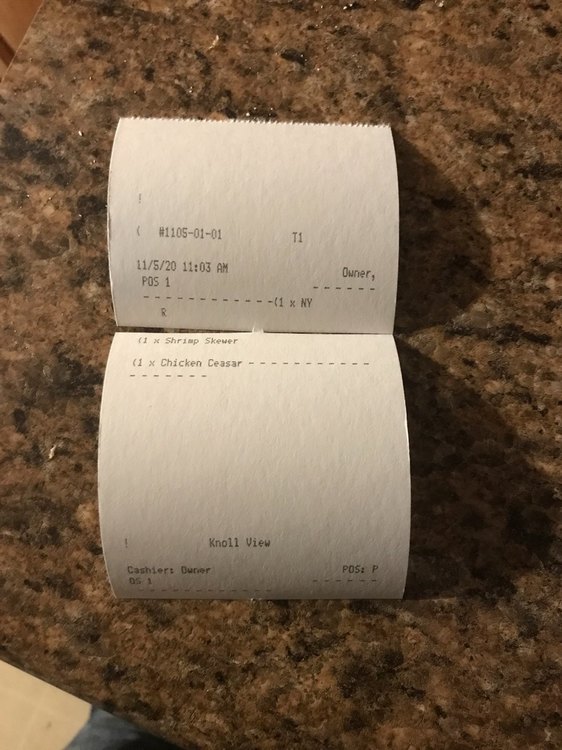

For my case , it doesn't help . Even i put 0А,0А,0А,0А,1D,56,42,00 . Still remain the same. Kindly Help please

Edited November 13, 2020 by SA

[Kaylene]

12 minutes ago, SA said:

For my case , it doesn't help . Even i put 0А,0А,0А,0А,1D,56,42,00 . Still remain the same. Kindly Help please




I’m also still having the issue. It’s not working. I wish there was a phone number to call. I’m not getting any help this way. Maybe I just should find a new system.

[SA]

2 minutes ago, Kaylene said:

15 minutes ago, SA said:

For my case , it doesn't help . Even i put 0А,0А,0А,0А,1D,56,42,00 . Still remain the same. Kindly Help please




I’m also still having the issue. It’s not working. I wish there was a phone number to call. I’m not getting any help this way. Maybe I just should find a new system.

Haiz . got not idea which POS system is good as Loyverse . currently using this new thermal printer unable print the date and receipt code clearly . although both date and receipt code is important .

[106B]

Hello,

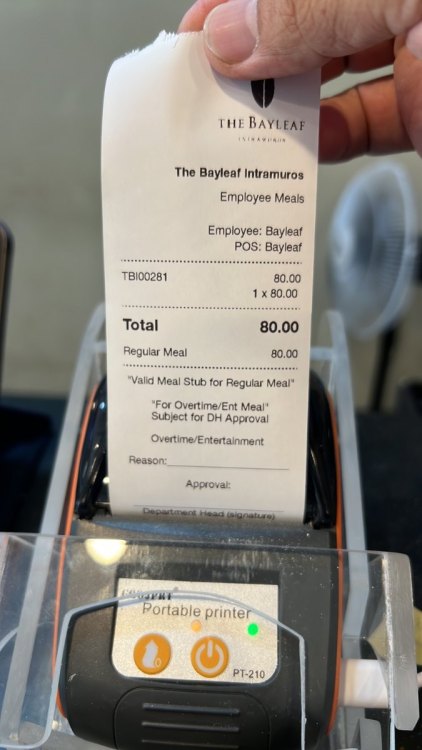

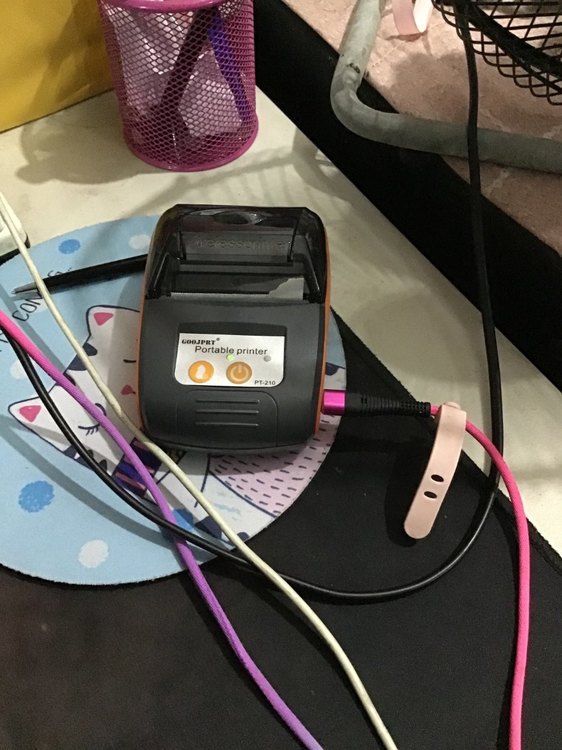

I made with my China printer Goojprt PT-210 in the field 'Cutter ESC/POS Commands', add 1B,64 before existing values.

Edited December 11, 2020 by 106B

[106B]

On 12/12/2020 at 12:39 AM, 106B said:

Hello,

I made with my China printer Goojprt PT-210 in the field 'Cutter ESC/POS Commands', add 1B,64 before existing values.

Best option  after 'Cutter ESC/POS Commands'  1B,64,0A,1B,64,0A

[Erika]

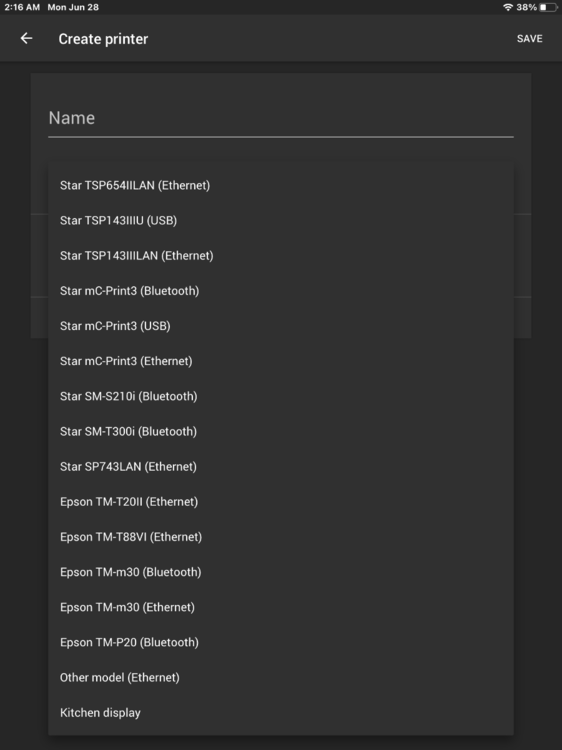

Hello can someone help me , on my ipad i cant connect on my printer its showing on other model is ethernet , and i dont know the IP address of my printer but when i tried on my android it works on but on my ipad it not working its not showing the Bluetooth  ty for your help

[Fely]

The receipt when printed has no total. please help. thank you

[Mag]

Hello, please check the settings of your printers in the POS. Have you indicated correct paper width or print width in advanced settings of the printer?

[Royalcasino]

What code should I put so that the test print looks aligned and not with incorrect jumps

[Blinken]

On 6/27/2021 at 8:29 PM, Erika said:

Hello can someone help me , on my ipad i cant connect on my printer its showing on other model is ethernet , and i dont know the IP address of my printer but when i tried on my android it works on but on my ipad it not working its not showing the Bluetooth  ty for your help

I was told that for iOS, I can only connect other printers using Ethernet/WiFi but for Bluetooth and USB only printers from the list will work.

[Macmac]

Same problem with me. Even though i used all the codes.



It will be ok but eventually it go back to the problem.



Also, how will i be able to align the logo in the center?

[balaibaibai]

How can i align text to right side using commands ? I already test all width but the text always on the left side

[Yasuaki]

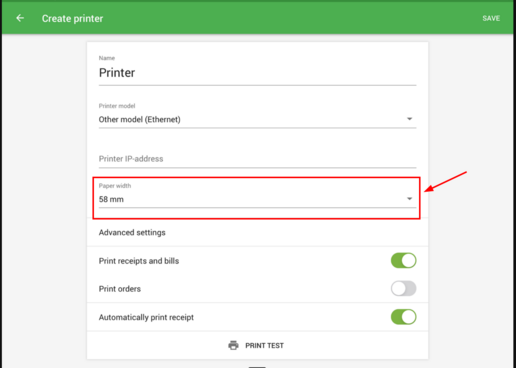

@Macmac @balaibaibaiThis problem happens when you use 58mm width paper but your setting is 80mm.
Please, open printer settings in the Loyverse POS App and choose the smallest PAPER WIDTH there. Save settings and try to print a new receipt.

[Peeps]

HIya. When printing a kitchen order ticket, my Star TSP100 is only printing a tiny strip for the product ordered. This means the ticket is too small to be put into the tab grabber. Is there a way to force the printer to print something above the ticket - even just adding some free text or a logo would solve the issue as it would print a larger ticket.

I've seen the suggestions above but I don't get the option to add linebreak code as I don't get those advanced options for some reason.

Thanks so much for any help.

[Yasuaki]

Hello @Peeps

Could you post a picture of the printed strip here?
It will help us a lot.

[JEZEasy]

Hi can somebaody please help me?

How can I adjust the margin on the leftside when printing receipts?

Note: I already tried adding 0A,0A on the Cutter Esc before the original figure but still it does not work.

I also tried adjusting the width 80mm/  58mm and to the advance setting 72mm/64mm still it's nit working.

----------

My printer is GD41BT China Brand

Receipt size : 80mmx 70mm

Thank you





Edited January 15 by JEZEasy

[Yasuaki]

Hello.

Unfortunately, we don't have information about the printer: GD41-BT.

We recommend using our supporting printer.
https://help.loyverse.com/help/supported-printers
