How to add printer Sam4s giant 100d?


buckethead
 Share

Recommended Posts

Please help how to add printer?

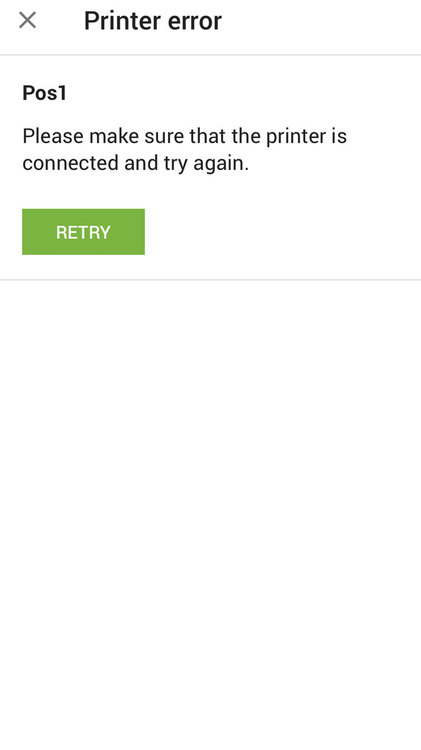

what i did is copy the ip address of the router to the add print. But it nothing happens. Picture below was the result when i click the test print2FD66C99-B63E-4265-9140-49EE8197EB25.thumb.jpeg.06beb8af80284334c82ee76f816f8083.jpeg

Link to comment
Share on other sites

Hi friend.

You have to enter the IP address of your printer.

Follow this steps to find the IP address of your printer.



Turn the printer’s power switch off

Hold down the FEED button located on the front of the printer

While continuing to hold the FEED button down, turn the power switch on

The lights should flash for a few seconds, and then one or two pages should print out with a configuration report

You can now release the FEED button

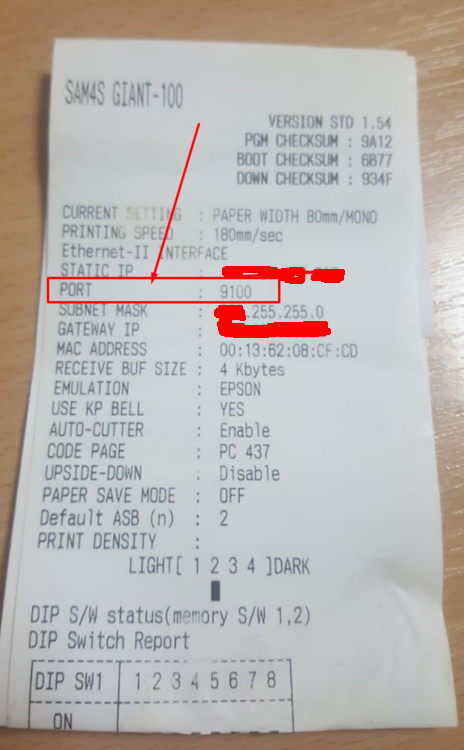

You can find the IP address of your printer under the "Current IP Parameters Status" section (underlined by orange below).


Link to comment
Share on other sites

19 hours ago, Mag said:

Hi! Please be sure that the port of your printer is 9100. How to change, please check the manual of printer or manufacture.


Yes sir it works. Thank you very much. Hehe

Link to comment
Share on other sites

  • 6 months later...

Does anyone know how to change the Port to 9100 on the Sam4s 100D using a Mac or iPad? Looks like it only can be done from Android or Microsoft. Thanks

Link to comment
Share on other sites

Thanks Mag but it says the G-Cube App only works with the following printers:

Printers

Gcube-100

Gcube-102

Gcube-100w(WiFi)

Gcube-102w(WiFi)



If anyone can share how to change the Port to 9100 on the Sam4s 100D using a Mac or iPad that would bee appreciated.

Sam4s 100D is listed by Loyverse as a Supported Printer so someone must have done it?

Also, why doesn't Sam4s 100D come up as an option when adding a printer on the iOS (like the other Supported Printers)?

Thanks!

Link to comment
Share on other sites

  • 6 months later...
9 hours ago, Mauricio G said:

This does not work for Sam4s 100

Hi, please try the  following  steps:

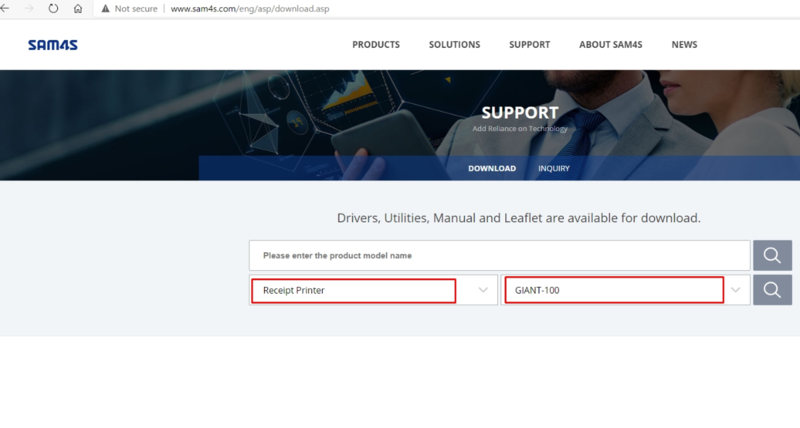

1) Enter the website of the printer manufacturer www.sam4s.com/eng/asp/download.asp

2) Select the required model Sam4s 100

3)  Install on PC Integrated Utility for GIANT & Gcube

4) Run utility and change port settings


  • Thanks 2
Link to comment
Share on other sites

  • 1 month later...
On 12/1/2020 at 1:45 PM, Mauricio G said:

Did anyone got a response on how to change the port to 9100??

I don't know how it was done, but the shop I purchased my 3 x Sam4s Giant 100D printers from had their IT Tech log into my computer remotely and set the 3 printers all up on my wifi and changed the port to 9100.

Link to comment
Share on other sites

  • 7 months later...
  • 4 weeks later...
On 12/1/2020 at 2:45 AM, Erich said:

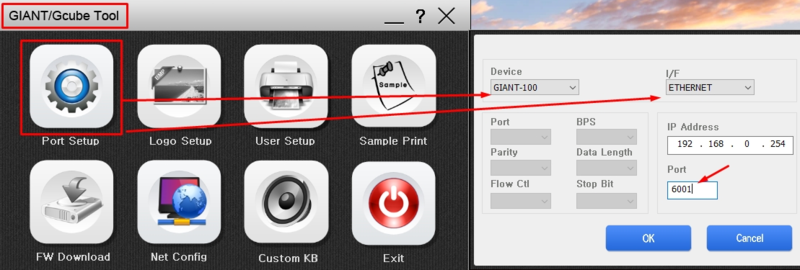

Hi, please try the  following  steps:

1) Enter the website of the printer manufacturer www.sam4s.com/eng/asp/download.asp

2) Select the required model Sam4s 100

3)  Install on PC Integrated Utility for GIANT & Gcube

4) Run utility and change port settings

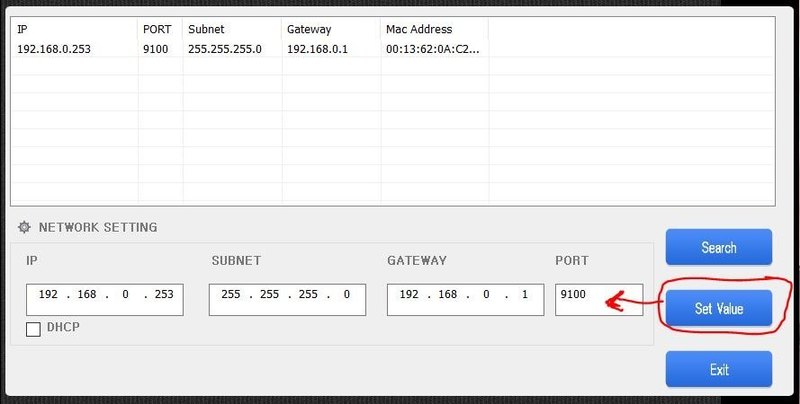

5) Change PORT in Net Config...


a) Change Port 6001 To 9100.JPG

Change Port 6001 To 9100.JPG
