Barcode Scanner not apply Items to Ticket


Yanaing
Go to solution Solved by Yasuaki,

Recommended Posts

Hi, I am new to loyverse and currently testing to use in my store. I bought Green Tech GTBS-X760E barcode scanner and used it for testing.

When I filled the barcode of the items under each Item with that scanner, it wrote the numbers after scanning the barcode.

When I tested about selling in the Sales menu, the barcode sounds but the items are not put to the Ticket (Cart).



May I know it is because of the barcode scanner issue?

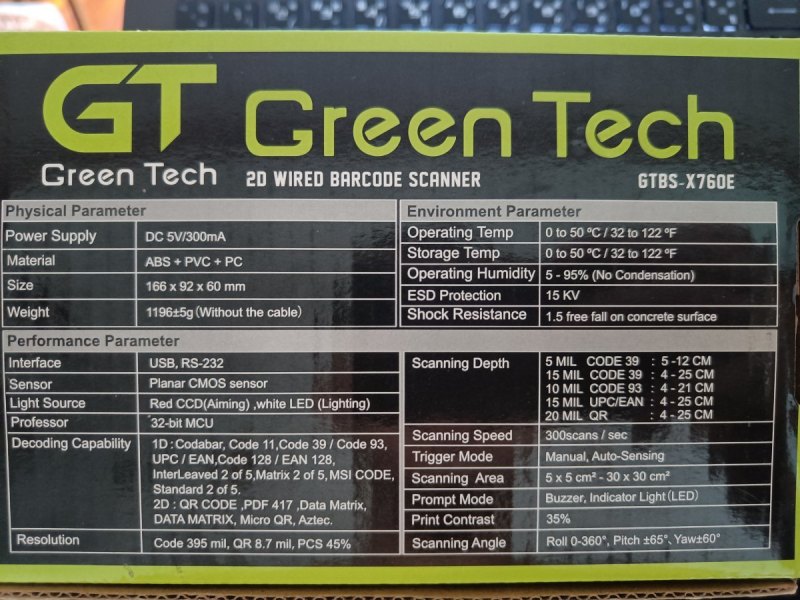

I have read the scanner's documentations that supports USB and RS-232. I attached the specifications just for reference.



Thank you.

GT Scanner.jpg

Edited by Yanaing
Link to comment
Share on other sites

  • Yanaing changed the title to Barcode Scanner not apply Items to Ticket
  • Solution

Hello @Yanaing

Thank you for your post.

Usually, when a barcode reader reads a code, the reader adds “Carriage Return” (="CR", ≒[Enter key]) at the end of the number.
Example: When a barcode reader reads the barcode below, it will signal “1001500CR” in real.




Could you check if Carriage Return is activated on your barcode reader?

  • Like 1
Link to comment
Share on other sites

Thank you for your reply @Yasuaki. I left to enable Character Ending configuration.

In the configuration, I saw the word *CR, CR+LF and  CR+CR to enable that the same word as you mentioned.



Thank you. It works now.
